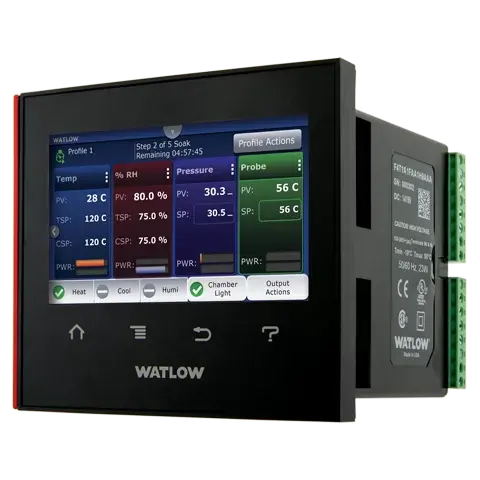

Now featuring e-mail and text alerts. Notify users of an event that has occurred such as a specific profile or step within a profile, alarm condition, limit condition or analog input error. The F4T temperature & process controller from Watlow offers a wide range of field removable I/O modules for maximum design flexibility. Configurations can be custom tailored to meet the scaling needs of a tremendous range of equipment and applications while providing exactly the hardware types required for compatibility. The F4T controller also features a 4.3 inch, color, graphical touch panel. Combining power, flexibility and functionality, this new controller offers unmatched versatility, and its best-in-class ease of use could very well make user manuals a thing of the past.
Specification
| TRU-TUNE®+ Adaptive Control | Yes |
|---|---|
| Agency Approvals | CE, China RoHS Level 2, CSA, FM (limit), RoHS by design, UL/EN 61010 Listed, UL508, W.E.E.E. |
| Alarms | Up to 14 |
| Ambient Operating Range | -18 to 50C°C (0 to 122F°F) |
| Communications Protocols | Modbus® RTU, Modbus® TCP, SCPI, Standard Bus, USB 2 |
| Control/Limit Loops | 4/4 |
| Description | 1-4 PID loops with profiles & data logging options |
| Max Monitor Channels | 24 |
| Max Output | 10A SSR |
| Mounting | Front panel or flush mount |
| Operating Requirements | N/A |
| Phase Configurations | 1 |
| Profiling | Yes |
| Supported Controllers | Composer PC software, F4T, Flex Modules (FM) |
| Remote Limit Reset | 1 |
| Display Height | 4.3″ PCAP color graphical touch |
£100.00
The F4T® integrated process controller combines the flexibility of a modular I/O with best-in-class ease of use and a sleek touchscreen UI, additionally provides custom tailored configurations to meet the scaling needs of wide range applications and equipment
